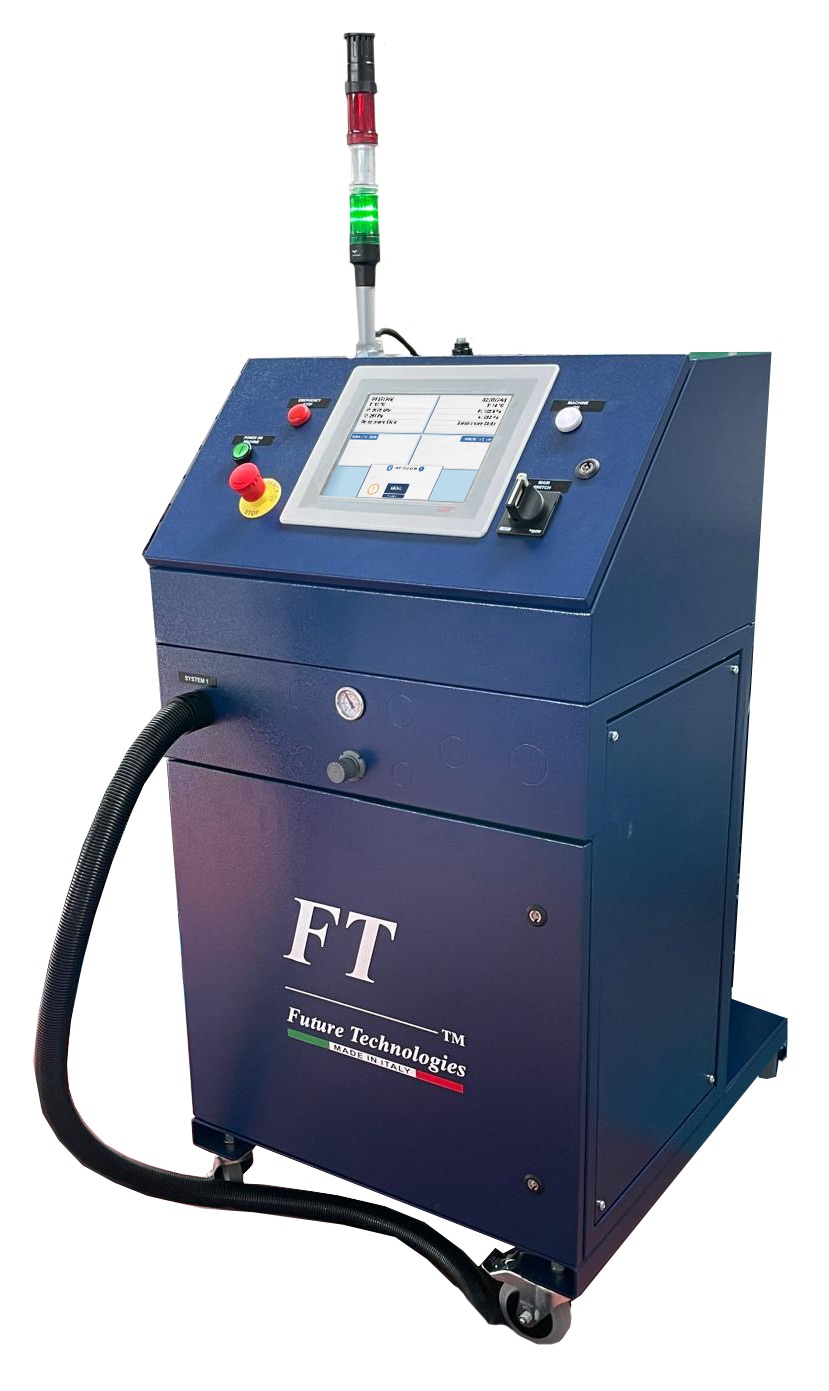

iRockall Refrigerant Charging Station
The iRockall is the pinnacle of production line efficiency. It is a complete evacuation and refrigerant charging system boasting charge accuracy of 1% or better, state of the art features, and first-rate construction. It rests on heavy duty locking casters, so the unit is mobile but able to be locked into place. It is perfectly suited to medium or high throughput facilities producing chillers, display cases, refrigerators, freezers, condensers or any other refrigerant-bearing device.
The iRockall features a Linux-based operating system with a user-friendly and highly durable touchscreen control. Refrigerant is supplied from a tank either using a refrigerant transfer pump or by heating the refrigerant cylinder (e.g. the Airserco 4054m or 5054).
115v, 230v and 460v power options are available, as well as hydrocarbon (flammable) refrigerant versions.
Airserco prides itself on supplying top-of-the-line equipment to manufacturers at competitive costs and with unbeatable service and support. That is why our OEM customers have trusted us since 1933.
Please contact us for a quote for a iRockall Charge / Evacuation combo unit, to ensure that we match the correct machine to your specific application.
Station Options Include:
- Automatic cycle selection by bar code scanner
- Printer
- Dual independent vacuum systems
- Dual independent charging systems (two simultaneous refrigerants)
- Volumetric or turbine refrigerant metering systems
- On-board or centralized refrigerant delivery systems
- HFC-only: High-flow version for up to 260 grams / second charging
Technical Characteristics
- Linux-based operating system
- Touch panel display
- CE marked for potential dangerous (flammable) areas, and built in accordance with the European Machinery Directive
- Injector Length: 10 feet
- Refrigerant metering system: 1 (dual-charge option available)
- Charging capacity: variable for each application
- Charging speed: up to 1.4 oz/s (HFC refrigerants)
- Charging accuracy: ± 1 gram (charges <200 grams), ±1 % (larger charges)
- Injector connection: 1/4″ Hansen F (ISO 7241B), 3/8″ Hansen or Schrader available
- Connection to the refrigerant supply line: 1/4″ or 3/8″ Hansen quick connect, Scrader or custom solutions available
- Vacuum pump capacity: 10 cfm (larger available upon request)
- Programmable working cycles: 999
- Working temperature: 40-115 degrees F
- Power Supply: based upon your facility needs
- Power consumption: 0.7 kW, with 10 cfm vacuum pump
- Dimensions (h x w x l): 60 x 24 x 33 inches
- Weight: ~300 lbs
