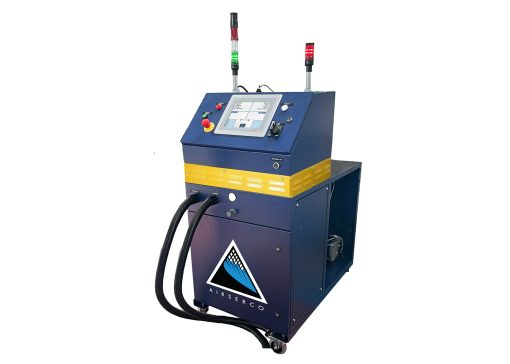

iRockall HC Hydrocarbon Refrigerant Charging System
iRockall HC is a combination evacuation and charging station for HCFC, HFC, HC and HFO refrigerants. It is designed to be user-friendly and efficient, while providing top performance and charging accuracy.
iRockall HC is ideal for medium and high throughput production lines of domestic and commercial refrigerators / freezers and other fields using of isobutane (R600a) and/or propane (R290). The iRockall HC is also a great choice for assembly lines using new refrigerants such as R1234yf and R1234ze.
The iRockall HC is designed to be used in conjunction with our specially designed safety monitoring center, electrically-protected ventilation fans, gas sensors, and gas containment enclosure. Our technicians will work with your facility maintenance staff to ensure that the installation conforms to user and code specifications (where applicable and desired). Every installation and facility is different and each installation is custom, so an on-site visit is necessary to confirm these details before a final quote can be provided.
Station Options Include:
- Automatic cycle selection by bar code scanner
- Printer
- Dual independent vacuum systems
- Dual independent charging systems (two simultaneous refrigerants)
- Volumetric or turbine refrigerant metering systems
- On-board or centralized refrigerant delivery systems
- HFC-only: High-flow version for up to 260 grams / second charging
Technical Characteristics
- Linux-based operating system
- Touch panel display
- CE marked for potential dangerous (flammable) areas, and built in accordance with the European Machinery Directive
- Injector Length: 10 feet
- Refrigerant metering system: 1 (dual-charge option available)
- Charging capacity: variable for each application
- Charging speed: up to .9 oz/s (HC refrigerants); up to 1.4 oz/s (HFC refrigerants)
- Charging accuracy: ± 1 gram (charges <200 grams), ±1 % (larger charges)
- Injector connection: 1/4″ Hansen F (ISO 7241B), 3/8″ Hansen or Schrader available
- Connection to the refrigerant supply line: 1/4″ or 3/8″ Hansen quick connect, Scrader or custom solutions available
- Vacuum pump capacity: 10 cfm (larger available upon request)
- Programmable working cycles: 999
- Working temperature: 40-115 degrees F
- Power Supply: based upon your facility needs
- Power consumption: 0.7 kW, with 10 cfm vacuum pump
- Dimensions (h x w x l): 60 x 24 x 33 inches
- Weight: ~300 lbs
