Recovery Unit for Flammable Refrigerants
$2,310.00

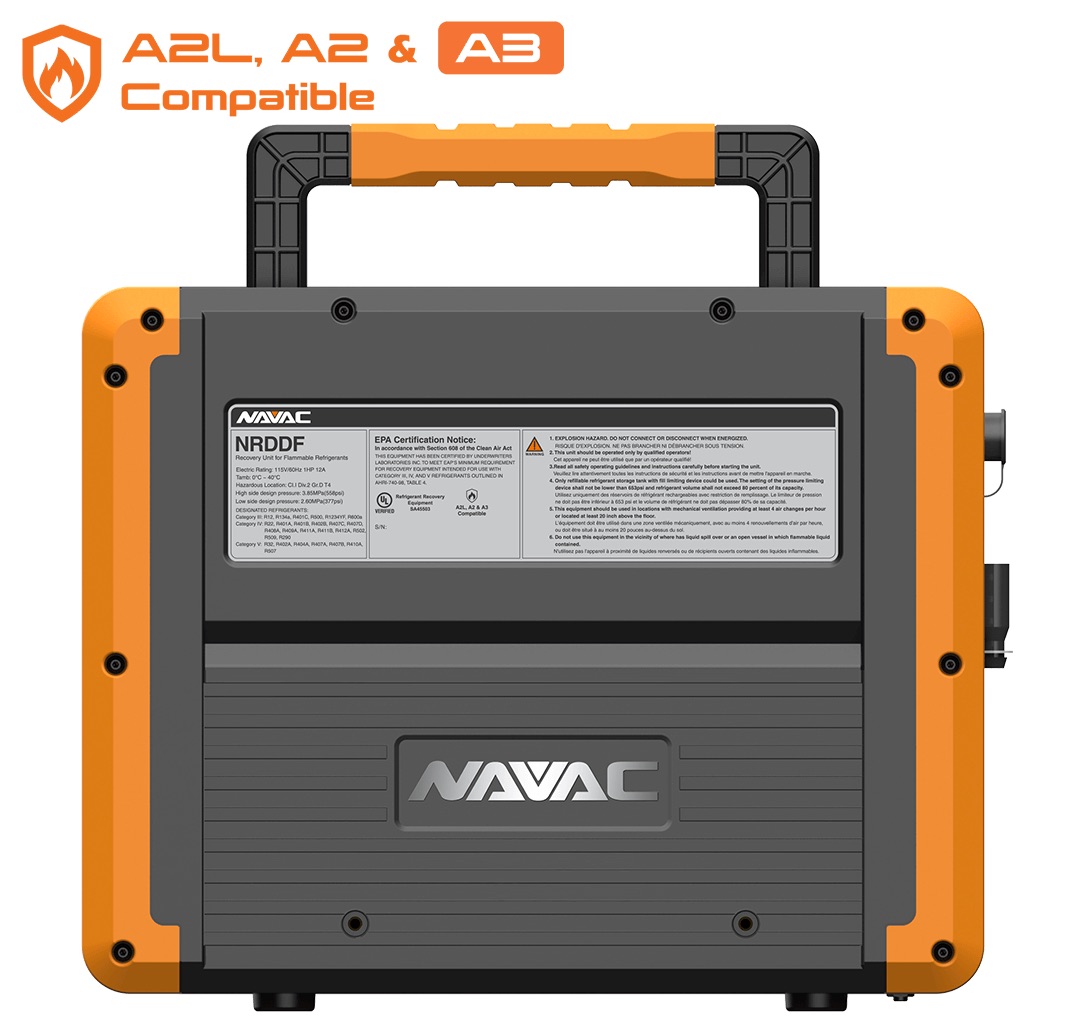

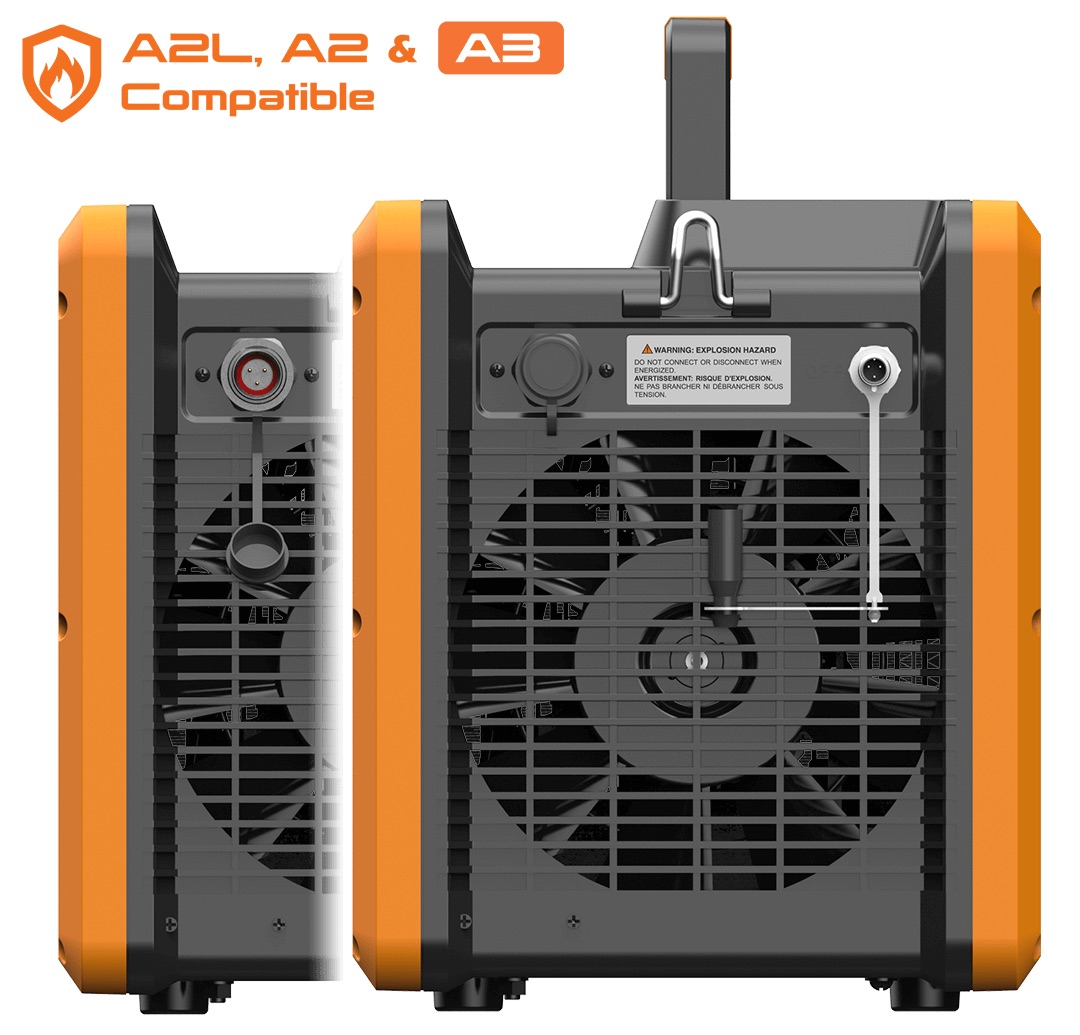

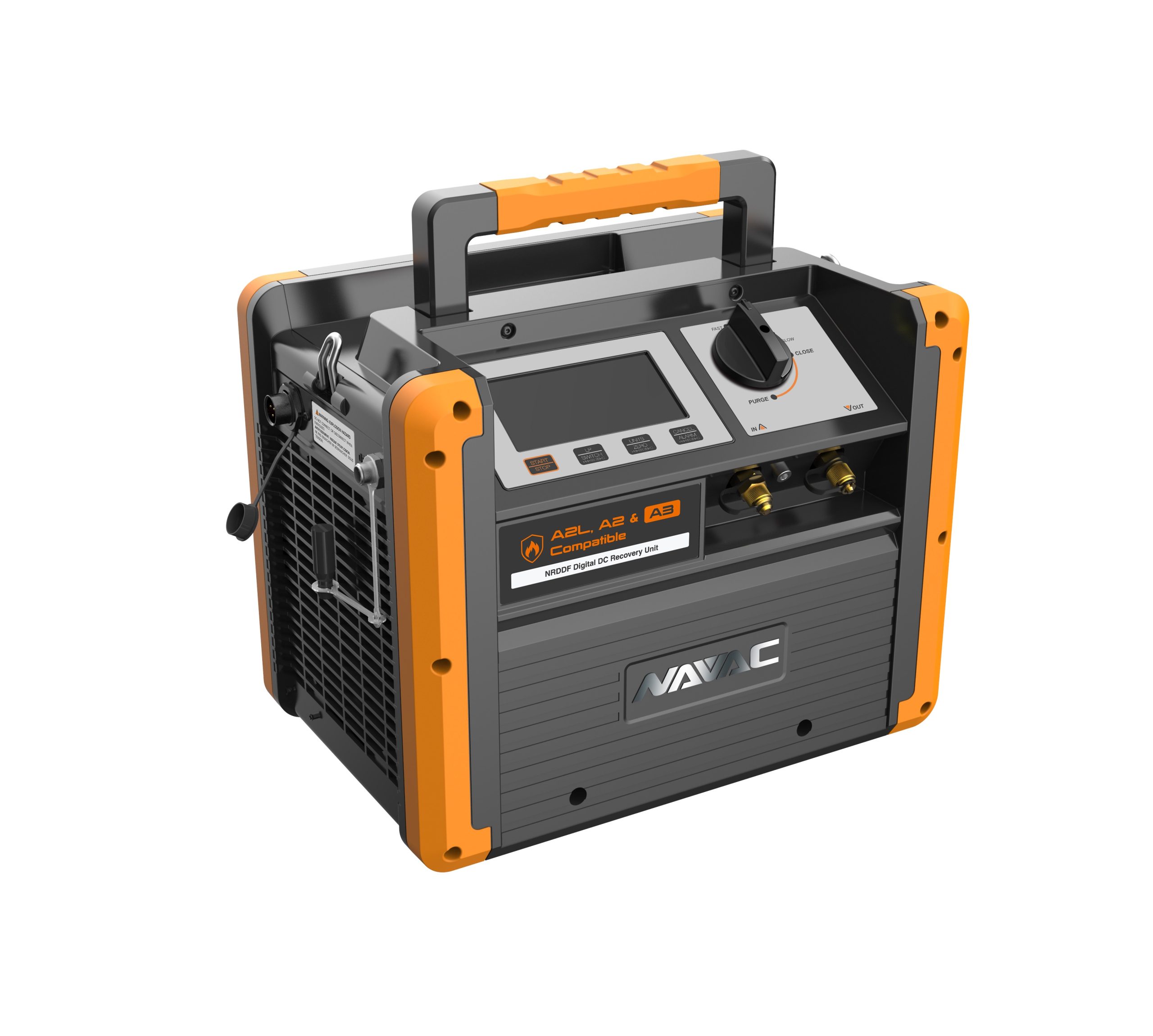

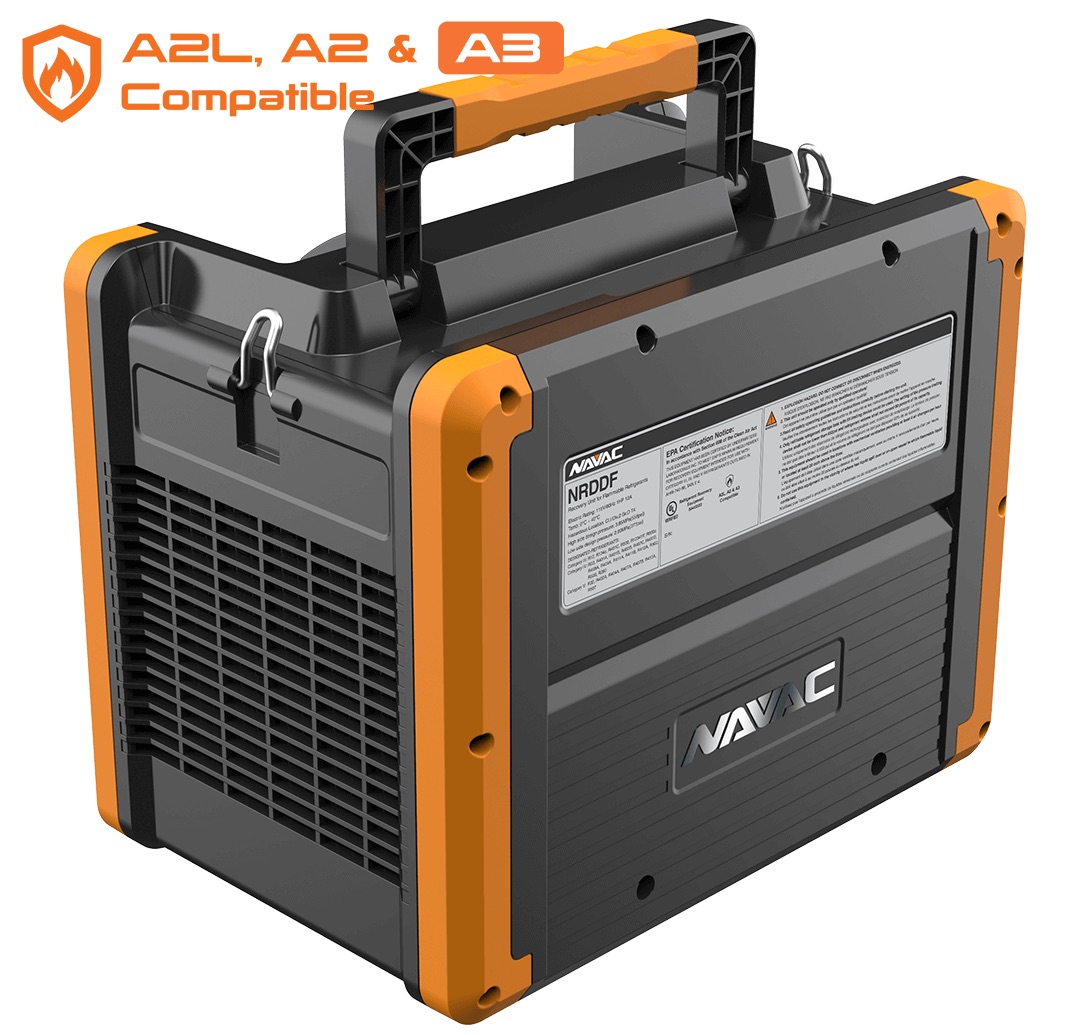

The NAVAC NRDDF is a compact, 24-pound recovery unit built for flammable refrigerants, certified to UL 121201, CSA C22.2 No. 213-17, and IEC 60079-7. Its brushless DC motor, twin-cylinder oil-free compressor, and oversized two-row condenser deliver fast, reliable recovery of A2L and A3 refrigerants, including R-32, R-454B, R-290, and R-600a, plus virtually every legacy refrigerant in production today. Self-purging functionality and a large backlit display make it simple to integrate into rework stations, end-of-line failure handling, and maintenance workflows.
Safe, Certified Recovery for A2L and A3 Refrigerants
As production lines transition to mildly flammable A2L refrigerants and hydrocarbon A3 refrigerants, recovery equipment has to keep pace. The NAVAC NRDDF was designed and tested specifically for flammable refrigerant service, carrying certifications to UL 121201, CSA C22.2 No. 213-17, and IEC 60079-7 standards, built for OEMs handling R-32, R-454B, R-1234yf, R-290 (propane), or R-600a (isobutane).
Broad Refrigerant Compatibility
The NRDDF handles virtually every refrigerant your facility is likely to encounter, spanning Category III, IV, and V refrigerants: legacy products like R-22, R-134a, and R-410A alongside the new generation of A2Ls (R-32, R-454B, R-1234yf) and A3 hydrocarbons (R-290, R-600a). One unit covers your current production and your next refrigerant transition. (Note: PROHIBITED to use with IIB and IIC refrigerants including RE170, R702, R1150, R429A, R432A, R435A, and R510A.)
Where It Fits on Your Line
For manufacturers, recovery is a daily reality. Units that fail end-of-line testing, engineering rework, returned product teardown, and charging station maintenance all require pulling refrigerant back out safely. The NRDDF pairs naturally with our A2L Refrigerant Charging Systems, the iRockall HC Hydrocarbon Refrigerant Charging System, and our pressure leak testing stations to complete the full evacuate-charge-test-recover workflow on your production floor. Sealing a stubborn fitting during evacuation? LiquiVac 4036 has you covered there too.
Specifications
| Power Supply | 115V / 60Hz |
|---|---|
| Motor | 1 HP brushless DC |
| Max Current Draw | 10 A |
| Compressor | Twin-cylinder, oil-free, air-cooled piston |
| Automatic Safety Shut-Off | 558 psi / 38.5 bar |
| UL-Verified Recovery Rate (R-410A) | 0.75 lbs/min vapor, 14.44 direct liquid, 18.41 push/pull |
| Dimensions | 14.5″ × 9.9″ × 11.7″ |
| Weight | 24.3 lbs |
| Certifications | UL 121201, CSA C22.2 No. 213-17, IEC 60079-7 |
| Warranty | 1 year* |
*For recovering only HVAC/R refrigerants from sealed HVAC/R systems. Warranty Voided if used for any other purposes.
WARNING: This product operates under high pressure. Follow all safety guidelines regarding refrigerant handling including wearing Personal Protective Equipment such as safety glasses and gloves.
